Customized 18u double door outdoor telecom cabinet with ventilation IP55 Telecom Enclosures
Customized 18u double door outdoor telecom cabinet with ventilation IP55
Description:

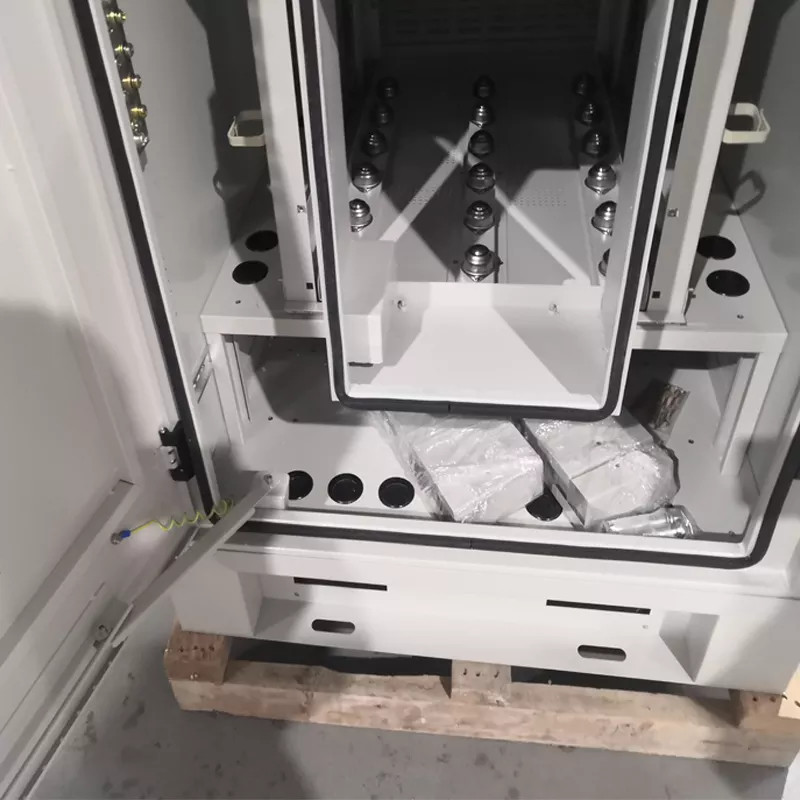

Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP65.
-Supportcustom-made..
Product Feature:
- Attractive powder coat finish
- Galvanised steel base
- Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
- IP55 cabinet, walls and roof in double steel with high quality insulation
- Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
- High performance Air-conditioning unit for heat removal
- Door stopper to hold door open at service
- Pass earthquake intensity 8 anti-seismic performance test
Technical Data Sheet :
Structure
Internal Dimension(H*W*D) :Standard 18U *800*1100mm or any customized size
External Dimension(H*W*D) : Standard 1200*900*1200mm or any customized size
Internal capacity:18U, 22U,24U,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)

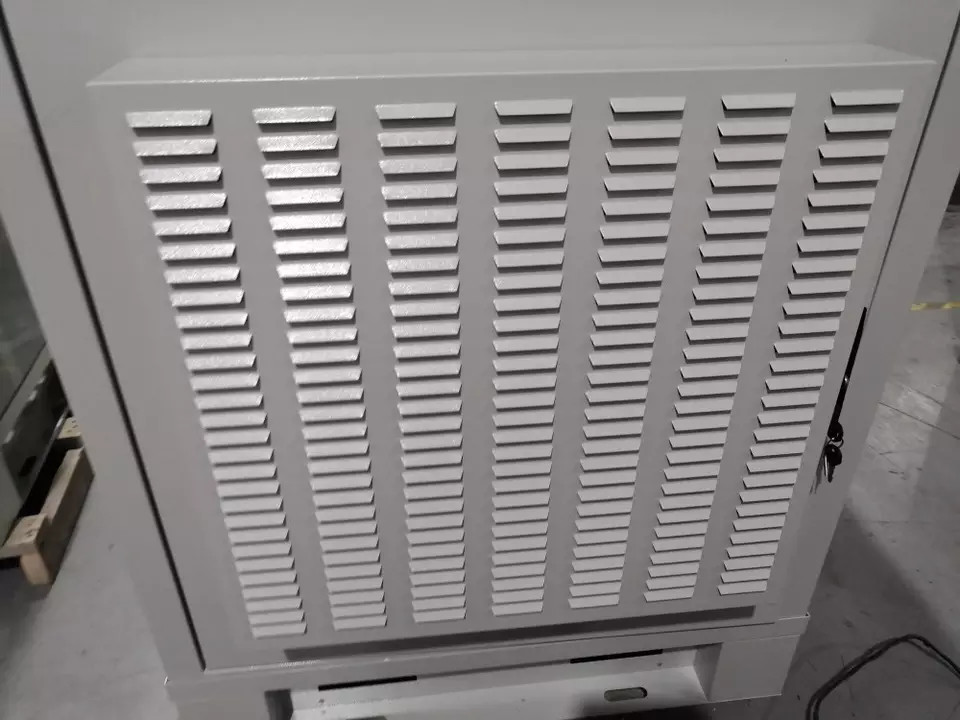

Ventilated door :With two door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: Material left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness
45mm,insulation cotton material is PEF
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :48vdc high speed
Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.
