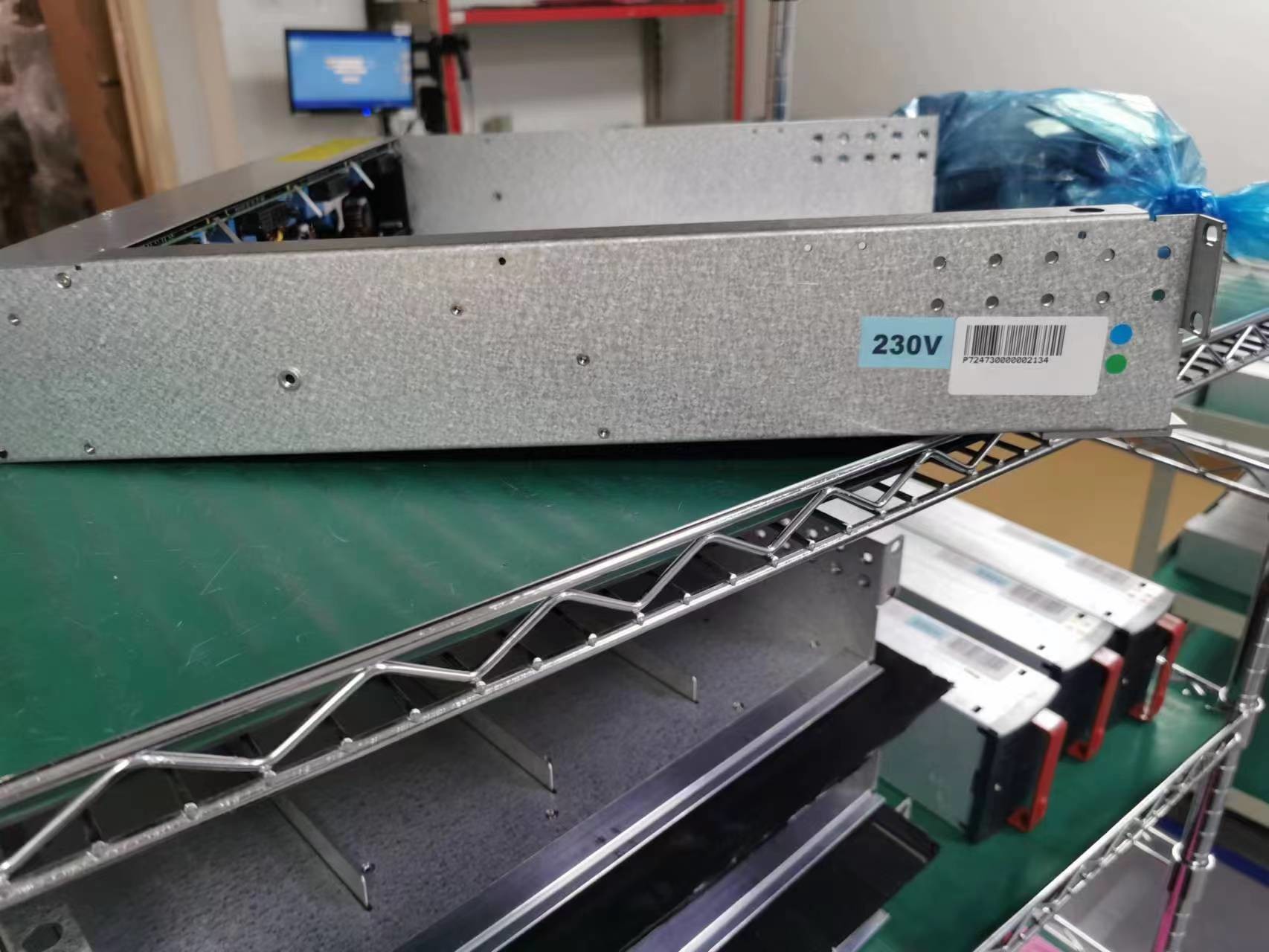

CE+T Inverter Module 230VAC 48VDC inverter 3KVA 2.4kw Bravo 2548/230-277 (P.N: T621D30201 )
Bravo 25 - 48/230-277 is a compact and scalable modular inverter providing a pure sine wave at AC output. It provides an excellent AC backup
solution in conjunction with a DC Power system. It uses cutting edge technology to provide the most energy-efficient in a compact size.
The ECI technology eliminates all single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 96% in
AC to AC conversion, and above 93.7% in DC/AC conversion, hence reducing operating costs. We can build the systems up to 2.7 MVA.
Applications
All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures
low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.
Main Features
• Extra AC input for increased efficiency on double conversion
• Wide AC input range up to 293 Vac L-N
• Up to 12 kVA in 2RU - 19 inches
• Up to 2.7 MVA by using extra syncrhonization device
• 1P or 3P infrastructure
• Compatible with Inview S, X and GW
| Part Number: Module / Shelf | T621D30201 / T624730000 |
| Cooling / Audible noise | Fan forced cooling / <65db @1meter |
| Dielectric strength DC/AC | 4300 Vdc |
| Operating T° / Relative Humidity (RH) non-condensing | Tested according ETS300-019-2-3 Class 3.1
-20°C to 65°C, power de-rating from 40°C to 65°C / Max RH 95% for 96 hours per year |
| Storage T° / Relative Humidity (RH) non-condensing | Tested according ETS300-019-2-1 Class 1.2
-40°C to 70°C / Max RH 95% for 96 hours per year |
| AC Input Data | |
| Nominal voltage (current) | 230 Vac / 11.8 A, 240 Vac / 11.0 A and 277 Vac / 9.5 A |
| Brownout | 1600 W @150 Vac / 2400 W @195 Vac linear decreasing |
| Power factor / THD | > 0.99 / < 3% |
| Frequency (Synchronization range) | 50 Hz (47 - 53 Hz) or 60 Hz (57 - 63 Hz) |
| DC Input Data | |
| Nominal voltage (range) | 48 Vdc (32 - 63 Vdc)1 , derating starts @44 Vdc |
| Nominal current | 54.4 A |
| Maximum input current (for 15 seconds) / voltage ripple | 66.8 A / < 10 mV RMS |
| AC Output Data | |
| Efficiency AC to AC (EPC) / DC to AC | > 96% / > 93.7% |
| Nominal voltage2 / Current (User selectable) | 230 Vac / 13.1 A, 240 Vac / 12.5 A and 277 Vac / 10.8 A (200 - 277 Vac) |
| Frequency / frequency accuracy | 50 or 60 Hz / 0.03% |
| Nominal Output power | 3 kVA / 2.4 kW @ 230 Vac |
| Nominal current | 13 A @ 230 Vac |
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
